hot blast stove chequer support units are cast iron components that hold checker bricks in blast furnace hot stoves, ensuring stable heat transfer for ironmaking efficiency and operational reliability.
Product Description
hot blast stove chequer support components serve as structural elements in blast furnace hot stoves, supporting checker bricks that preheat air crucial for ironmaking. Intended for suppliers, OEM buyers, and plant operators, these supports maintain the integrity of the checker brick arrangement, facilitating stable and efficient heat exchange within the hot stove environment.
Constructed primarily from cast iron, these chequer supports include columns, girders, grids, shoes, and refractory elements designed to tolerate high thermal stresses. Sourced from manufacturers offering trial assembly and full quality documentation, these components are customizable per customer specifications to fit various blast furnace designs and hot stove configurations.
Commonly used in steel plants worldwide, hot blast stove chequer support structures contribute to sustaining blast furnace operational performance. Their compatibility with diverse boiler and furnace types means that buyers can source components tailored to their existing infrastructure, supporting replacement and maintenance requirements in metallurgical processes.
As a blast furnace chequer support, this product is designed for customization and includes comprehensive quality documentation. Trial assembly procedures help verify fit before shipment, assisting buyers in confirming compatibility with existing hot stove systems. The use of cast iron chequer support materials ensures thermal resistance suitable for demanding heat exchange roles in blast stoves.
Sourcing from an experienced hot stove component supplier provides access to clear part marking systems that facilitate on-site installation. This arrangement benefits importers and distributors by reducing installation complexity and supporting international delivery arrangements. Availability in configured sets enables easier bulk procurement for plant maintenance schedules.

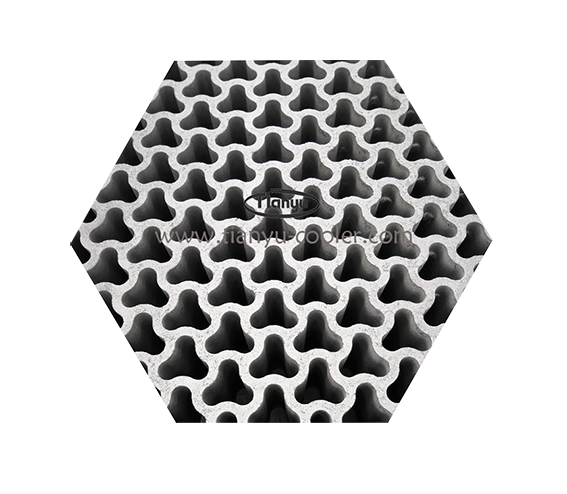

The blast furnace is a crucial component of ironmaking, used to convert iron ore into iron. To achieve this, the hot stove preheats the air that is fed into the blast furnace. The hot stove includes a chequer support, which is a cast iron component that provides support for checker bricks arranged in a checkerboard pattern. This arrangement facilitates efficient heat transfer, and the chequer support is designed to withstand high temperatures and thermal stresses.

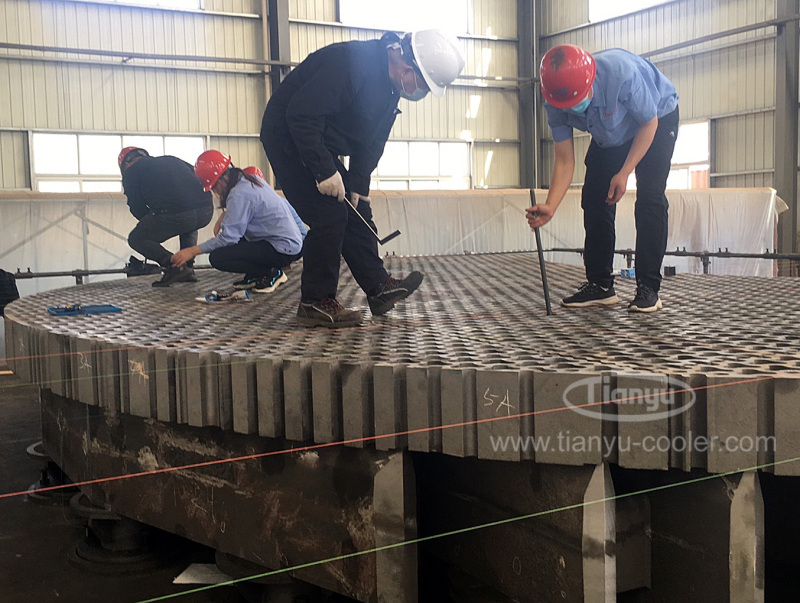

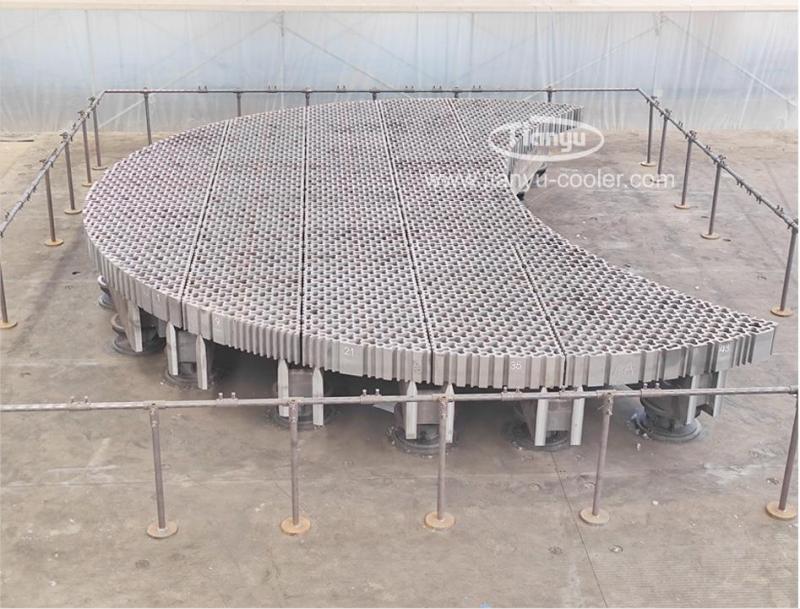

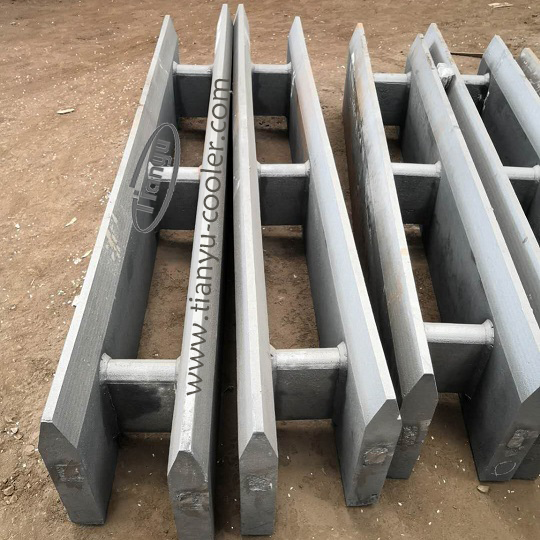

The chequer support system of a blast furnace typically includes columns, girders, grids, shoes, and refractory components, which can vary according to customer design. At Tianyu, we provide a full set of quality documents based on technical specifications and conduct a trial assembly at our factory to ensure level requirements are met. We also use a clear marking system to facilitate easier installation at customer plants.
Our chequer supports have gained a reputation for reliable quality and excellent customer service among our internal clients, with products delivered to clients in the US, India, Germany, Ukraine, and Southeast Asia. Our clients include Primetals Technologies, Danieli, Sinosteel, and CISDI.
Use Scenarios
In metallurgical plants requiring regular upkeep of blast furnace hot stoves, hot blast stove chequer support components are selected for replacement or retrofit projects. These components support the checker bricks that preheat throttle air, thus maintaining furnace efficiency. OEM/ODM buyers benefit from the customizable nature and documentation provided for these supports, aligning with specific plant design and operational protocols.

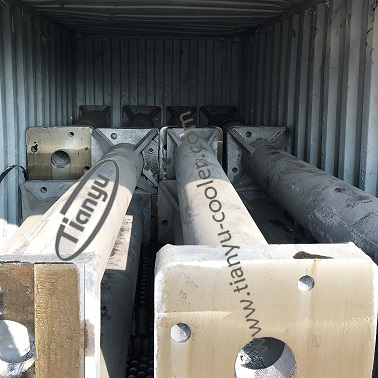

Distributors and importers serving steel manufacturing facilities can stock hot blast stove chequer support parts to meet demand for timely blast furnace maintenance. The packaging and labeling systems support efficient logistics and inventory management. These parts are essential for sustaining the performance of hot stove preheating systems, making them practical inventory choices for industrial supply chains.
